SOLAR PANEL INSTALLATION, PART 2: EXTERIOR COMPONENTS

In the first part of this post series, I talked about our rationale for DIYing a larger-capacity solar system in our 2007 Airstream Interstate T1N Mercedes Sprinter-based Class B RV.

In this post I will describe the principal external components and the general approach to this job.  I'm not going to include precise measurements or detailed instructions because (1) installation principles have already been described by others, especially the solar equipment vendors, and (2) we may be the only T1N Interstate owners on the planet who choose this particular solar array and installation strategy, and therefore it's not worth it for me to over-do the details.  There are easier ways to do this type of project, and there certainly are cheaper ways.  If any reader does decide they want more information on this exact installation, please contact me via interstate.blog -at- gmail and we will chat.

So here goes my attempt at giving a general orientation and a "feel" for the project.
As explained in the first post, our plan was to use the high-quality but functionally useless OEM roof rack that Airstream installed on the T1N Interstates.  Here you can see that both the air conditioner and the Fantastic are higher than the rails, so this requires a vaulting system for the panels.
For the panels themselves, we chose a Grape Solar model called GS-S-100-TS.
Tap to expand for clarity. I'm adding this excerpt from the technical data sheet (PDF link) to distinguish this panel from other models, some of which appear similar but are lower efficiency and different construction (and less expensive).
Here is what one of the 3 panels looks like when "dry fit" framelessly in the intended space:
By coincidence, these panels were exactly as wide as the rails, literally to within millimeters.  Photo taken by me standing on the roof.  You can see my husband to photo right, standing on the Telesteps 1400 E ladder that we keep in our Interstate.
We bought 3 of these panels and other components to be described from a small company called AM Solar.
I think they were happy to receive our rather large order.  These photos are from the packing materials.
We decided to run the wiring for the panels down through the propane refrigerator vent.  AM Solar sells what is called a Refrigerator Vent C-Box (with the "C" standing for "combiner") for exactly this type of retrofit.

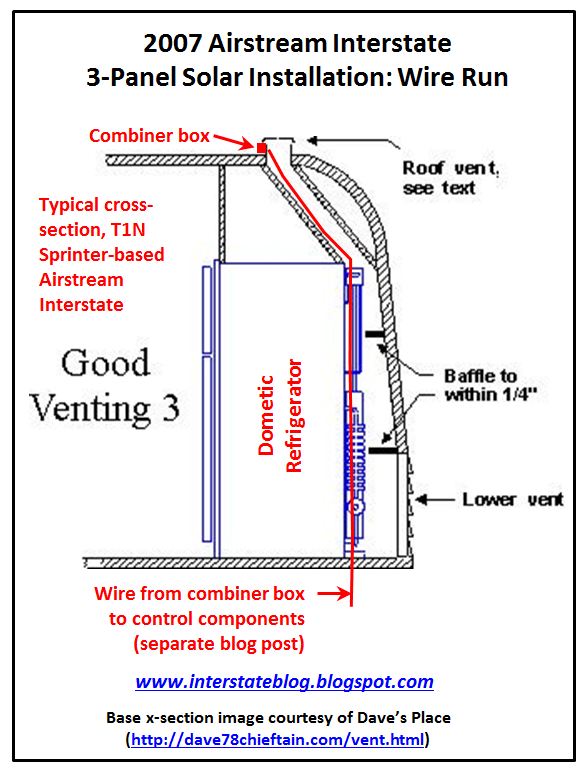

Tap to expand for clarity.  This is a simple diagram that will be reflected in the next few photos to follow.
Thanks to Dave's Place for the base image.
My husband bought this type of wiring from Lowes, but recommends to other DIYers that it would be better to get a similarly spec'd wire with a larger number of thinner strands.  The wire he bought was available locally but was stiff and challenging to work with.
Here is the installed combiner box with the cap off, shown penetrating the side of the fridge roof vent.
Cap on.
Screen replaced on vent, but rain shroud not yet in place.  Note that there is an elbow conduit visible just to the right of photo center.  That part did not come with the combiner box - my husband added it to protect the wire.
Wire then comes down through the fridge cavity and proceeds below the cavity floor (we did this part of the installation while replacing our Dometic 2351 refrigerator which is described in this post).  The solar panel wire is zip-tied to the existing bundle to keep it from interfering with the fridge.
Here's where things get more interesting and non-standard.  Because we were mounting these 3 panels on the OEM roof rack, we could not use conventional hardware such as what is shown in this photo which I screengrabbed from this Roadtreking blog entry.
Gosh this makes me nervous! Those tiny little adhesive feet and those tiny little panel clamps! It looks so flimsy to my untrained eye!  But I've never once read an account of a solar panel flying off a roof and landing on a highway, so my durability fears would seem to be unfounded.
Of course, that particular Class B poster had no roof air conditioner to contend with, a scenario that would make any Houstonian faint dead away with shock.
Here's a closer view of a conventional attachment mechanism for direct on-roof placement, photo screengrabbed from this forum thread.  I believe that some folks use only adhesive - no screws.
We decided to build a frame out of a versatile extruded aluminum product called 80/20, which tag-lines itself as "the industrial erector set".  The next series of pics shows how those components go together.
You've heard the adage "measure twice, cut once"?  Well, with this expensive 80/20, I suggest measuring fifteen times before placing your order.  My husband got the order exactly right on his first try, but it took him many hours of pondering and calculating before he pressed the "buy" button.

Here you see the general arrangement of the support rails.  The center gap is larger for maximum air conditioner clearance.  We wanted the panels to be vaulted above the a/c, but no more than necessary, in order to minimize the degree of wind that the panels would catch and the degree to which we would affect the vehicle's center of gravity.
We used our drill press to punch new holes in the Grape Solar panel frames for our non-standard attachment to the 80/20.  A hand-held drill would have posed a risk of punching through the glass panels themselves.
The panels attach to the 80/20 rails using these stainless steel assemblages.  The "tongue" slides into the slots in the 80/20.
This is a cross section, so that you can see what I mean by "slots".
Every part of the 80/20 system goes together with its own special hardware.
It takes a special tool to reach in there and tighten.
Close-up of one part sliding into another. The end is threaded so that a protective cap can be screwed on.
There's the finished assemblage, back side, with everything tightened up.
Front side view.
In my next post, I'll talk about how the clamps and risers are attached to the OEM roof rack.  That post may be a bit more time in coming, because we still have to weld receivers for the risers onto the cylindrical clamps that attach to the roof rack.

Sunday, December 27, 2015

SOLAR PANEL INSTALLATION, PART 1: PREAMBLE

Our 2007 Airstream Interstate Class B T1N Sprinter-based RV was born without a solar energy installation for recharging our house battery (newer models have multiple batteries but our original configuration only had one Lifeline).  After a year of ownership and about a dozen in-state overnight trips, with our forays being limited by our family responsibilities and employment schedules, we decided that we wanted to go ahead and DIY a solar system.  We knew it would be a big job that would take some time, but our long-range plan is for more elaborate off-grid trips, and we want to be ready when that time comes.
Because gosh knows that I have very little regard for staying in campgrounds.  Hookups are nice, but there's a terrible experiential price to be paid for those conveniences, as I explained near the end of this post.  And the generator is good to have for emergencies and short-term uses, but I don't want to be deafened by it when I should be enjoying the great peaceful outdoors.
As far as we know, our plans in this regard were unprecedented.  Neither my husband nor I had seen an existing example of a T1N Interstate with a retrofitted solar system, either in the resale market or on Air Forums.  With the amount of work and expense associated with this job, we did extensive research on what would be the best way to accomplish our goals.  Here are a few sources from which we gleaned our concept-level information.
  1. Without question, Handy Bob's elaborate solar power diatribes are the best on the internet, especially this one which describes some common pitfalls associated with both DIY and professional RV installations.
  2. We were well-cautioned by the seemingly endless solar-related thread-hatching on Air Forums.  As of the date of this blog post, I can safely report that there is not another system on the Interstate that causes as much angst for owners as the battery maintenance, which in most model years hinges primarily on the efficacy of the vehicle's corresponding solar system.  You can read this thread and this thread and this thread and this thread and still not even remotely be done with the conversation as it relates to Airstream's solar installations, electricity management hardware, accidental coach battery ruination risks, parasitic system draws, the emerging potential for lithium battery upgrades, and other facets of this complex issue.
  3. In our research, we also encountered some anecdotal reports that influenced our decision tree.  This Roadtreking post subtitled "Adding Solar to an Older Class B" was among the useful vehicle-specific sources we found.
One theme that persisted across many different accounts was the need to over-design the solar system.  In theory, you calculate X amount of demand and so you install X amount of solar capacity and you're done.  In practice, you calculate X amount of demand and then proceed to install perhaps as much as 2X or 3X capacity in order to be responsive to systemic inefficiencies, unforeseen circumstances, unavoidable parasitic draws, and other logistical limitations.


Given my desire to use our Interstate as a mobile personal workstation, my future electricity demands could be higher than those of the average vacationer.  For that reason, one of the first big questions that we had to address was where to put multiple solar panels on the roof of our T1N Sprinter-based Interstate.  The available space is small and there were already multiple pieces of equipment installed up there, including a Dometic air conditioner, a Fantastic roof vent along with its cover, propane fridge vent, digital OTA TV antenna, cab radio antenna, back-up video camera, extra brake lights... all that on the roof of a 22-foot camper van.  And remember Handy Bob's number one solar lesson - nothing can cast a shadow on the panels because any interference whatsoever will cause the systemic efficiency to plummet.
One of Handy Bob's no-no's, screengrabbed and annotated from this post.  Tiny shadows can scuttle the efficiency of the entire system, but many owners and installers are either unaware of this, or in denial regarding it.
I took my solar installation inspiration from this startling T1N Interstate photo that appeared in the resale market in mid-2015.
Holy crap!!  How did those owners get those kayaks on and off that roof?!
The genius in that kayak mounting example was that the owner(s) installed a second roof rack on top of the existing OEM roof rack, thus making that section of the roof do double-duty in supporting both the air conditioning unit and the cargo vaulted above it.   And if they could successfully do this with big bulky kayaks, surely we could do it with solar panels.  Right?
The OEM Airstream-installed "roof rack" on the first generation of Interstates is an odd contraption.  It is simultaneously the highest quality and most useless appurtenance that Airstream elected to add to the T1N Sprinter.  It is made out of high-quality stainless steel tubing that shows incredibly tight tolerances - how does a diameter of 2.001 inches sound in terms of precision manufacturing?  Where did Airstream get this stuff??  And yet in its original form, it is good for pretty much nothing, because both the Fantastic and the Dometic air conditioner protrude into the space above it, preventing anything from being placed on it.
Such an expensive piece of hardware ought to serve a purpose other than merely decorative, which may have been Airstream's intent given the corresponding physical limitations described in the photo caption above.  In my next series of posts, I'll talk about the strategies for maximizing the utility of this device, and the installation of our solar system components.

Friday, December 18, 2015

KREISCHE BREWERY AND LA GRANGE, TEXAS

A business trip took me to the La Grange, Texas area, where I was able to squeeze in a trip to see the Kreische Brewery and Monument Hill State Historic Sites.  Here are some photos of this unique destination, both the brewery and the historical city.
It's the kind of location that wouldn't necessarily cross my radar, because I'm more of a wilderness person (when responsibilities permit).  But when in Rome...
A study in contrasts - apparently some visitors assume that this is the kind of brewery tour where people actually get to drink beer.  In this case, they are about 130 years too late.  (Tap photo to expand for clarity and read-ability).
Tap to expand for clarity. An interesting combination of factors made this a dual-purpose historical site.
"This bluff is the northern limit of the Oakville Escarpment and marks the boundary between the upland post oak woodlands and the Fayette Prairie.  Here, along the bluff, "eastern" plant and animal species of the woodlands and prairie coexist with an isolated colony of "western" species.  Numerous plants and animals common to the limestone-based soils of the Hill Country, 70 miles northwest, have been transported and deposited in this locale by the Colorado River.  These species flourish in pockets of alkaline soils produced through erosion of the calcareious sandstone cap of the escarpment.  The occurrence of such biological diversity at one location is not singularly unique, but is uncommon and highly significant to scientists."
Art imitates life:  Sure enough, the man-made features had a "near but not quite" Hill Country aesthetic, just as the geographical and biological do.  This is a view of the brewery ruins.
View from above.  It's stacked stone, but not Austin-style stacked stone.
Mr. Kreische built his brewery by carefully corralling stream flow to a centralized location where it could be put to use.  The property is full of his stone water management structures.
Reflection in one of the interim pools.  The water has that opalescent quality that is found so often in the Hill Country.
This was a December trip, so most of the vegetation was dormant, but there were a few jaunty blooms here and there.
And ferns.  Once again, similar to, but not quite the same as, what one would see in the Hill Country.
Close-up of one of the barn windows.  Unfortunately I did not arrive at a time in which guided tours were offered, so I did not get to see the insides of any buildings.
Following this visit, I proceeded to the Colorado Landing RV Park, on the banks of the Colorado River about one mile from Monument Hill.
View of the Colorado a short distance from my parking site.
This RV park was very orderly and well-run, but it suffers from the same limitation I have found in other analogous riverine locations such as Pecan Park in San Marcos, which is on the San Marcos River - road noise.  Colorado Landing is located a short distance from the huge U.S. Route 77 bridge over the Colorado River.  The unimpeded drone of 18 wheelers flying over that thing was tedious, not consistent with the peace and quiet I would hope to find while sitting next to an undeveloped section of a major Texas river.  It appears that this kind of limitation is simply the trade-off one has to accept for urban proximity and full hook-ups.

Due to my professional schedule, I didn't have time to see La Grange proper, but I will leave you with a few pics of its most curious feature.
Trees in the middle of the city streets!
I saw one and I thought, "That's unusual!".  Little did I know, it was not an isolated phenomenon.
It made for some interesting local driving, especially in a 9-foot-tall Airstream Interstate, which is in danger of clipping some of those overhangs.
I'm sure there's a story behind this, but it's not readily available on the internet.  Perhaps I will discover it on my next trip to this area.
In a similar spirit, from this site

Monday, November 30, 2015

OVERSIZED CUP HOLDER FOR THE AIRSTREAM INTERSTATE

My husband had forbidden my idea of drilling holes into the cabinetry of our Class B RV Airstream Interstate so that I could install one of those large flip-down cup holders.  Fortunately, his objection forced me to come up with a more versatile and creative option for holding my beloved YETI 30 ounce Rambler.
When what to my wondering eyes did appear but this Amazon Lightning Deal:  The two Ogres Essential-Z chalk bag, the type of device used by mountain climbers and weight lifters to hold the chalk that keeps their hands from slipping.
You might wonder why on earth I would form an association between these two entirely-unrelated consumer products.  The answer is simple:  Because Yeti is asleep at the wheel and so is the aftermarket, to the point where both Yeti-branded and knock-off accessories are nonexistent at this time.  I had been searching for a 30-ounce tumbler carrying means for months, and it was only by chance that this Lightning Deal appeared on my computer screen and I was able to see the resemblance between the two products.

It's not as trivial an issue as you might think.  Like an increasing number of Texans who live in scorching hot weather for most of the year, I rarely leave my house without this Texas-designed Yeti tumbler in tow.  But I'm always fumbling with it, wishing I had an extra hand, or wishing I could stash it somewhere convenient.
I can now wear my 30-ouncer hands-free in this cross-body style!  I've been waiting a long time for this.

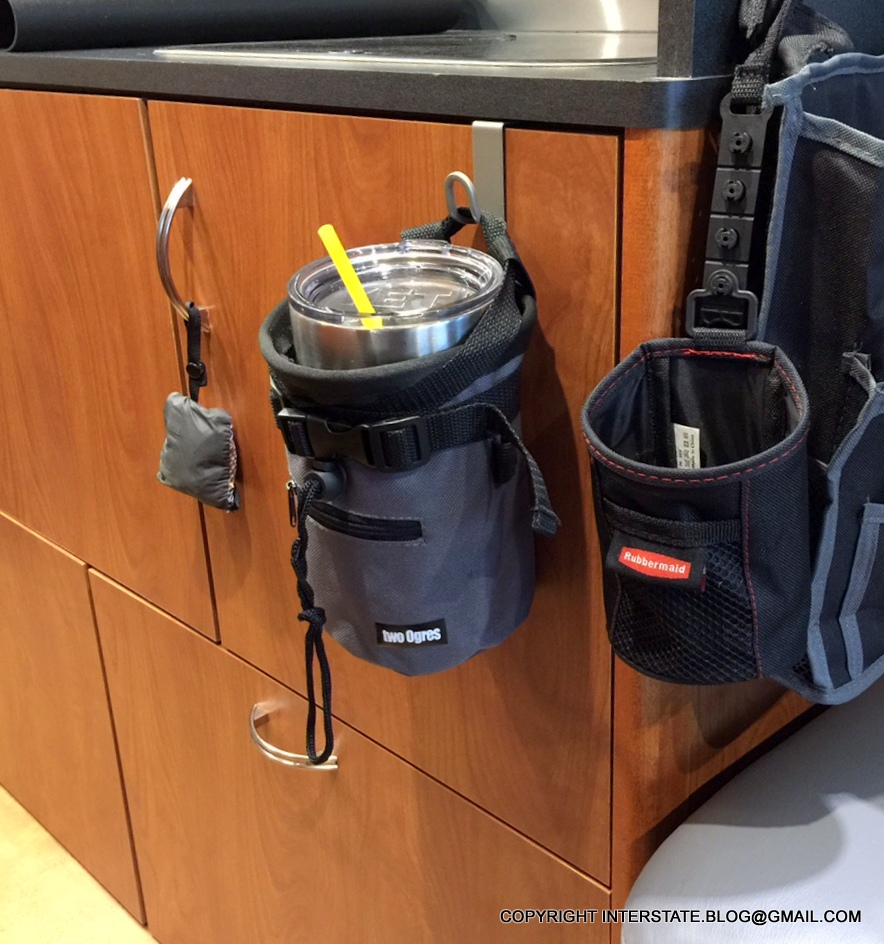

And here's how it looks when hanging in our Airstream.  You simply cinch the belt part around the upper part of the bag and loop it over a portable cabinet hook, in this case the Lynk Over Cabinet Door Hook.
